YTTX Tight Buffer Simplex Indoor Communication Single Mode Fiber Optic Cable with TPU LSZH Jacket
Product Description
Product profile

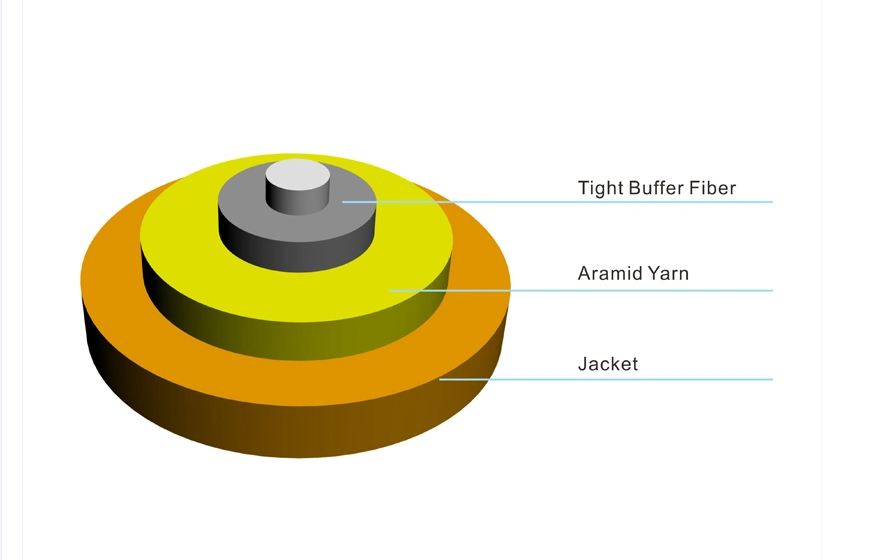

The SXC single-core optical cable uses a single cp900Ψm orΨ600|jm tight buffer optical fiber as the optical transmission medium, and a layer of aramid fiber is used as the force strengthening unit. The outer jacket is extruded with a layer of PVC or LSZH (Low-smoke, halogen-free, flame-retardant).
Product feature
• Excellent Stripping performance of tight buffer fiber
•The aramid fiber reinforced element makes the optical cable have excellent tensile performance.
•The outer protective material has the advantages of corrosion resistance, waterproof UV resistance, flame retardant, environmental protection, etc.
Application
•Optical fiber active connection jumper or pigtail.
•Indoor shaft level and forced ventilation level wiring.
•Interconnection of instruments and communication equipment.
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Structural parameter
| Cable type | Cable diameter (mm) | Optical cable reference weight (kg/km) | Fiber buffer fiber diameter (mm) | Tensile Strength
Long/short term
(N) | Crush resistance Long/short term (N/100mm) | Bending Radius Dynamic/static (mm) |
| SXC-1.6 | 1.65±0.05 | 2.6 | 0.6±0.05 | 40/80 | 100/500 | 60/30 |
| SXC-2.0 | 1.95±0.05 | 3.5 | 0.9±0.05 | 60/100 | 100/500 | 60/30 |
| SXC-3.0 | 2.85±0.05 | 6.5 | 0.9±0.05 | 60/100 | 100/500 | 60/30 |
Optical characteristicsTransportation &operating temperature: -20°C~+60°C
Ordering information | Cable diameter | 1.6-Ψ1.6mm, 2.0-Ψ1.95mm, 3.0-Ψ2.85mm |
| Fiber type | B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1 = 50/125, A1b=62.5/125, OM3= Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550 |
| Outer jacket material | V-PVC, Z-LSZH |
| Outer jacket color | Refer to Chromatogram |
| Marking &Package | Per customer's request or factory standard |
Note: 1.Delivery length can be customized according to customer's requirements.
2.Chromatogram as below:
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
